See it move

Change the shape, add holes, engrave text — watch the pipe update instantly.

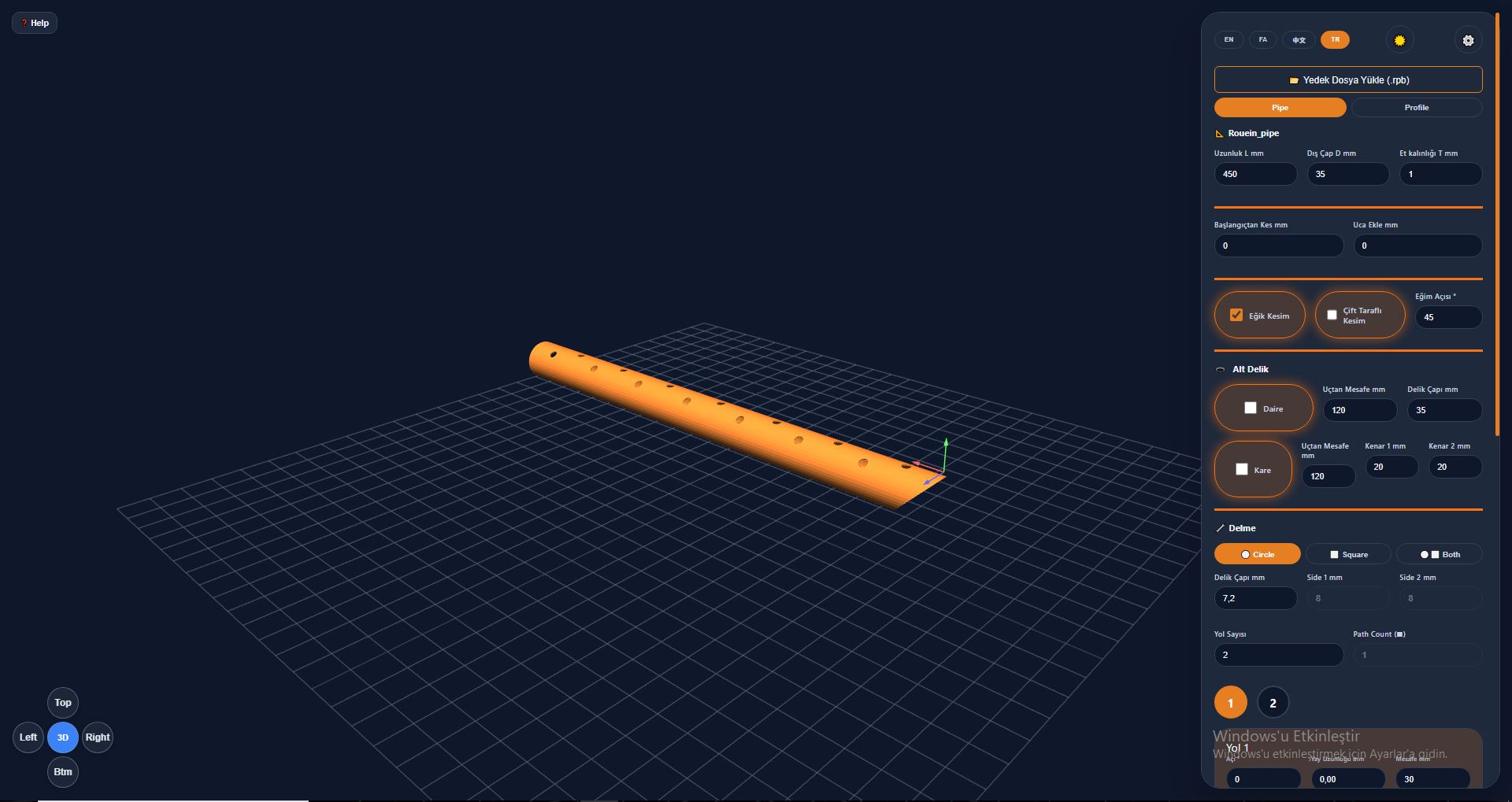

PipeDesigner UI — pipe with drilled holes and miter cut

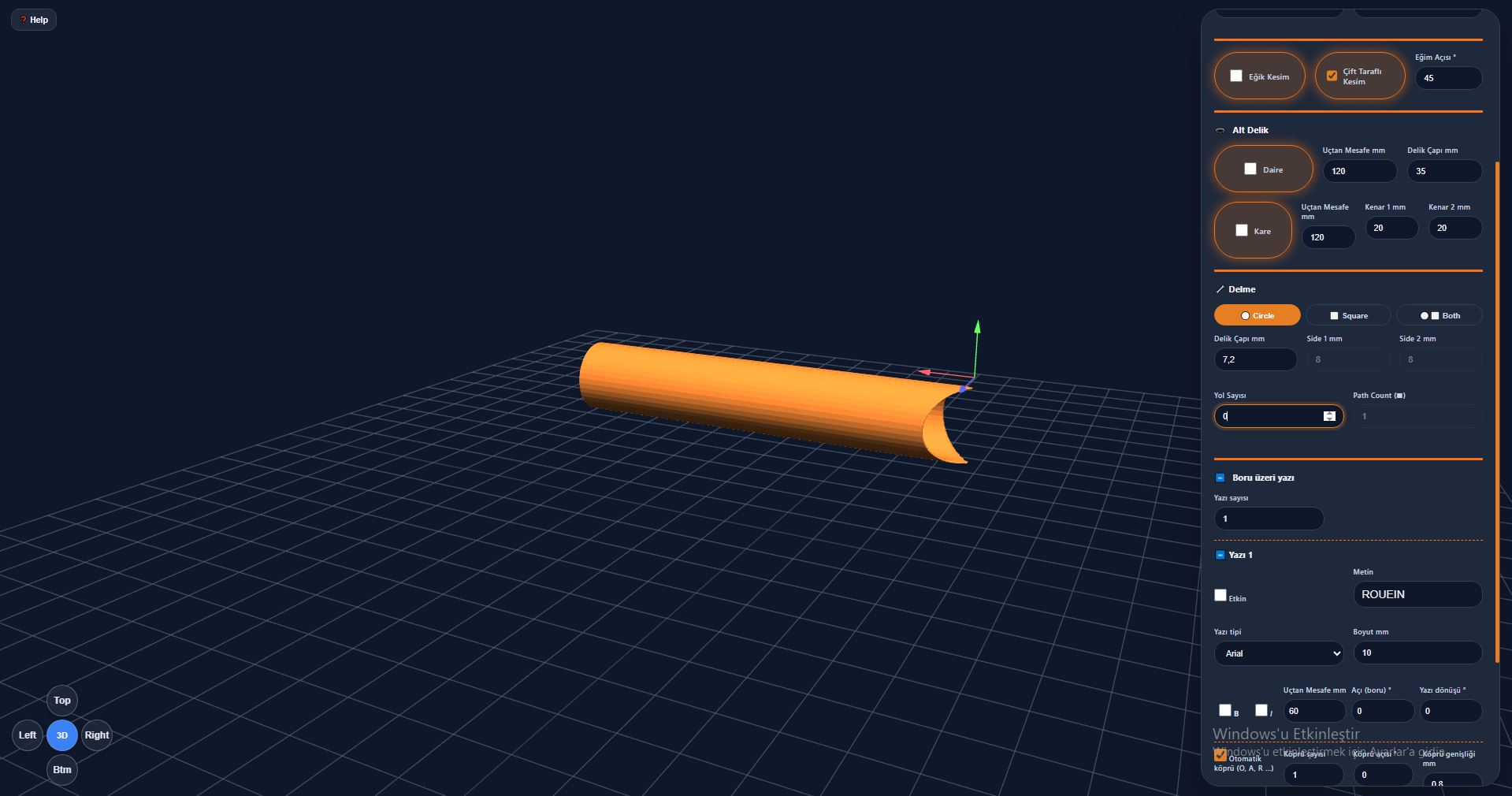

PipeDesigner UI — double-sided miter cut half pipe

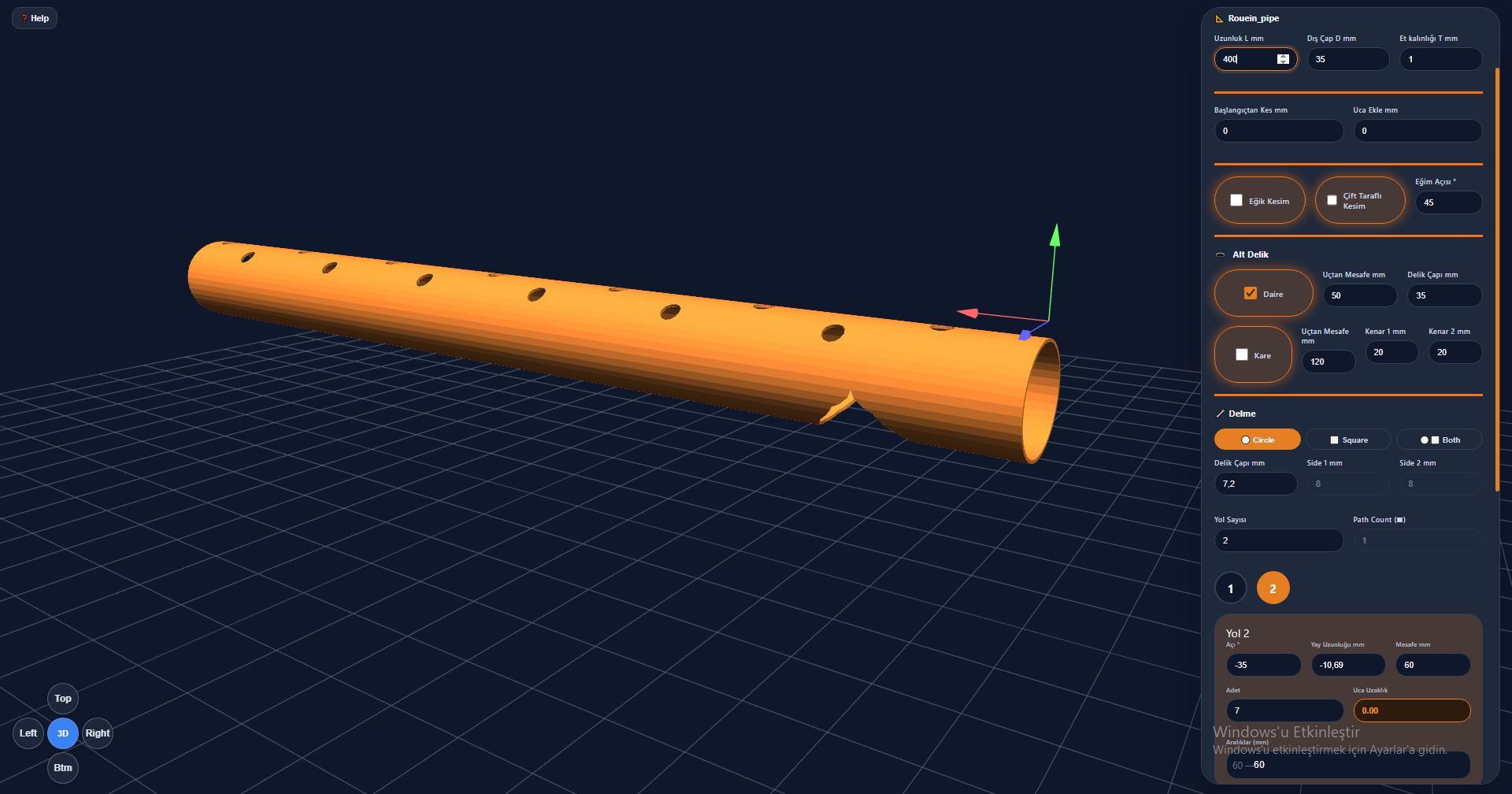

PipeDesigner UI — pipe with v-notch and hole pattern

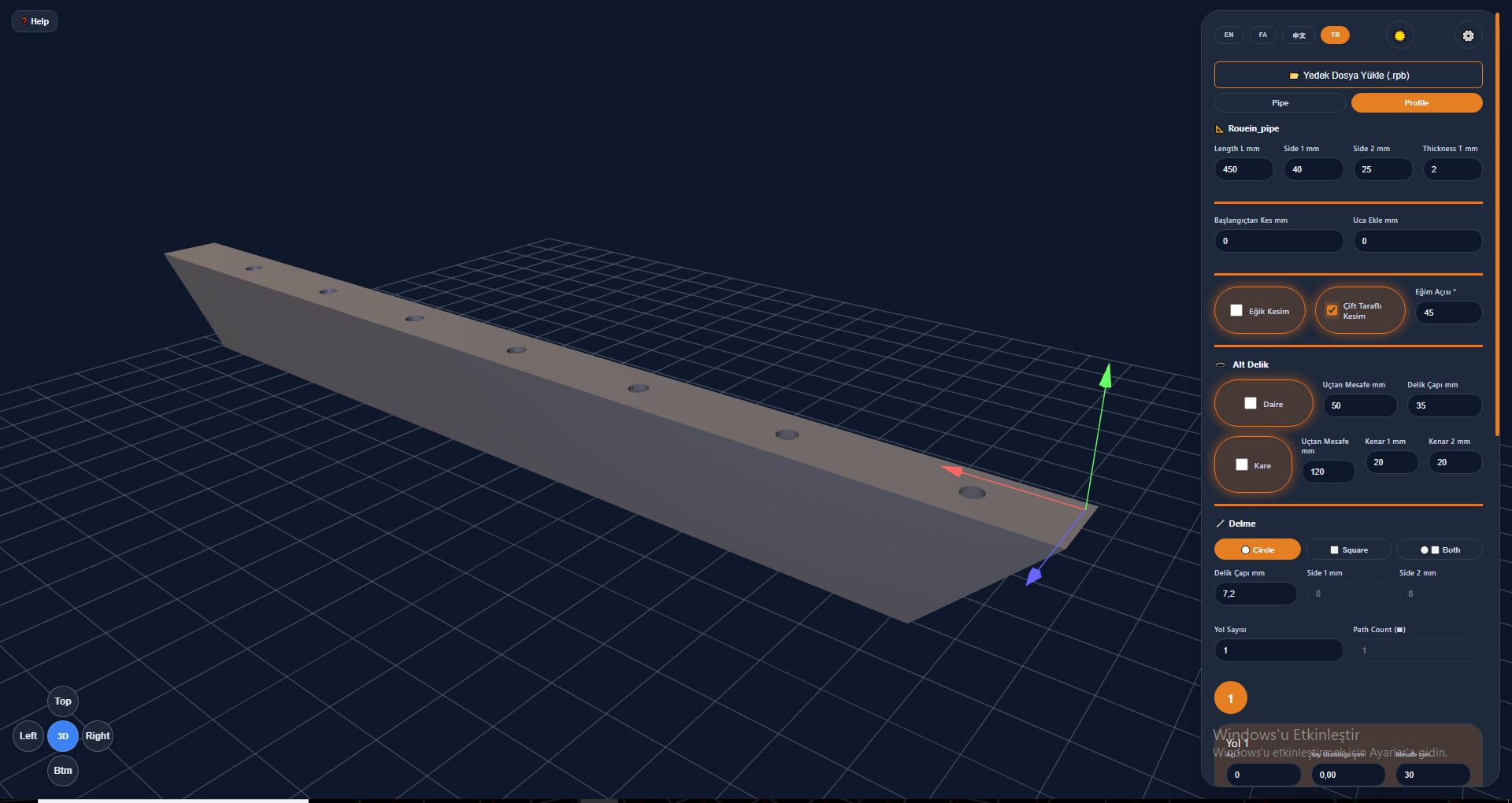

PipeDesigner UI — profile bar with beveled ends

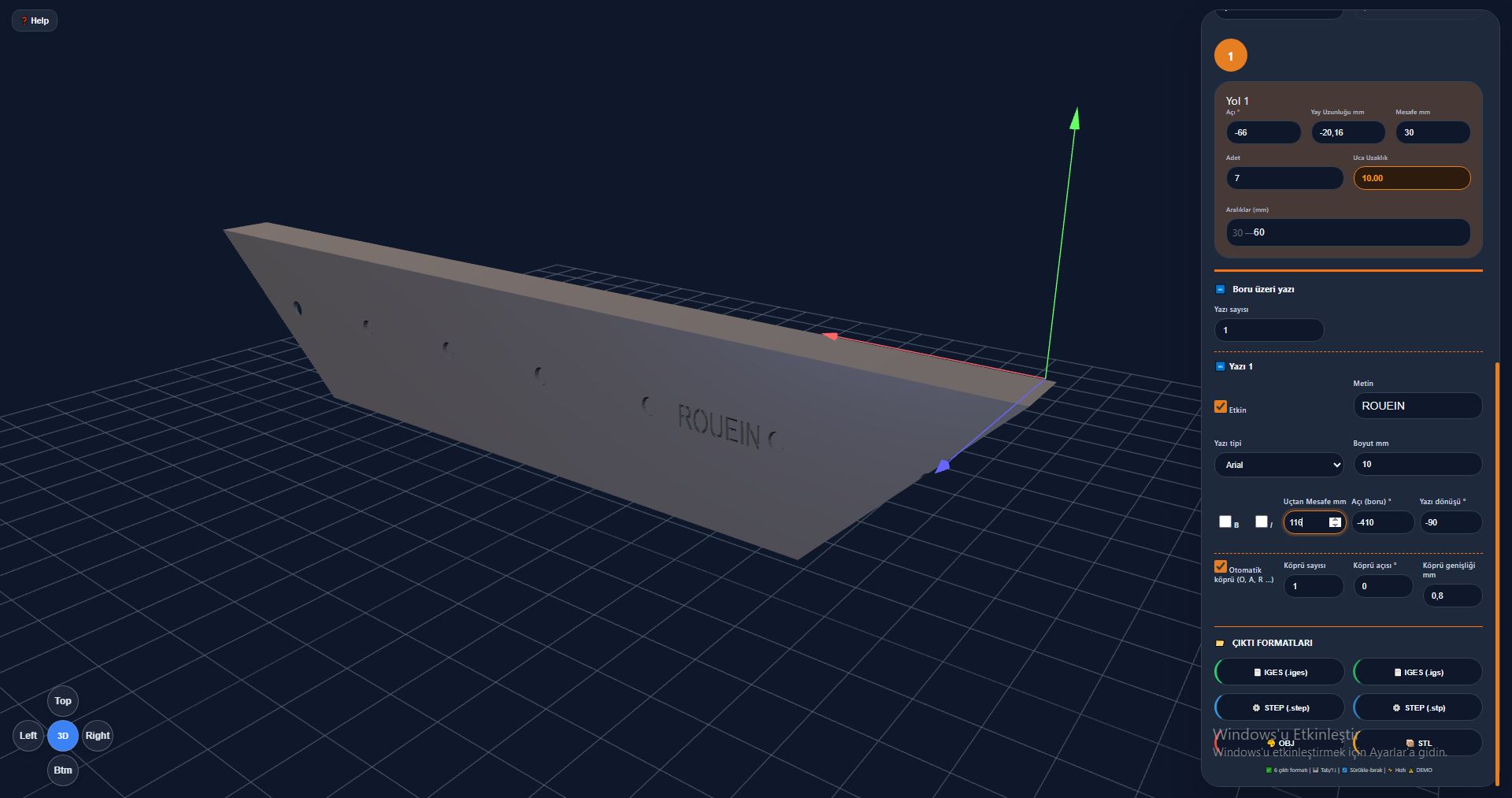

PipeDesigner UI — engraved ROUEIN text on profile

Export formats

PipeDesigner exports your design to 6 industry-standard formats — compatible with SolidWorks, AutoCAD, Fusion 360 and every major CAD/CAM tool.

IGES(.iges)
IGES(.igs)
STEP(.step)
STEP(.stp)
OBJ
STL
6 export formats SolidWorks · AutoCAD · Fusion 360 Re-importable for further editing
